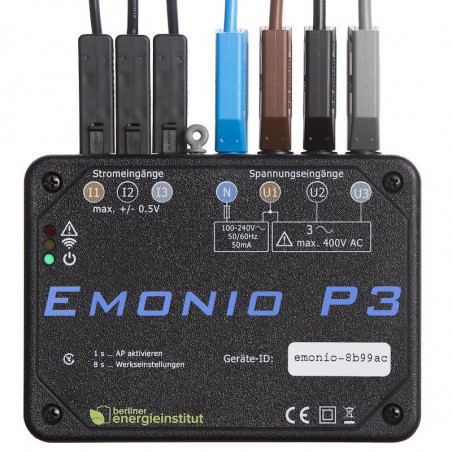

Emonio P3 - 500 A, 100mm

Tax included Shipping excluded

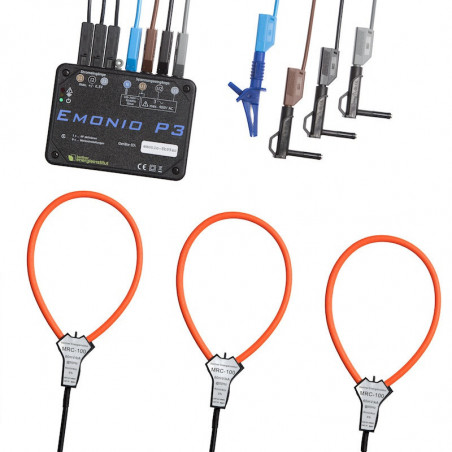

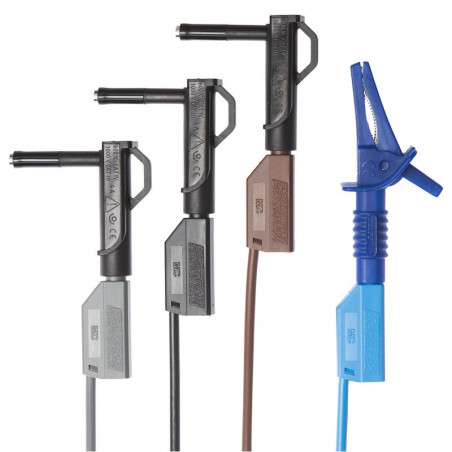

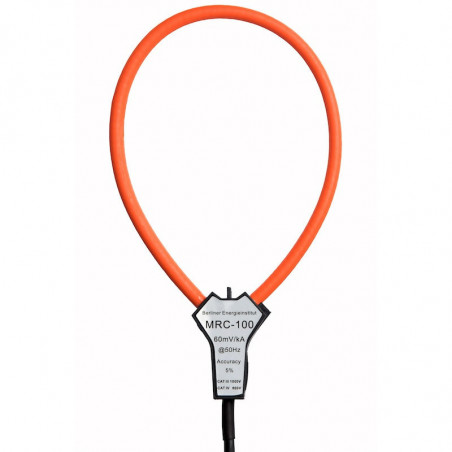

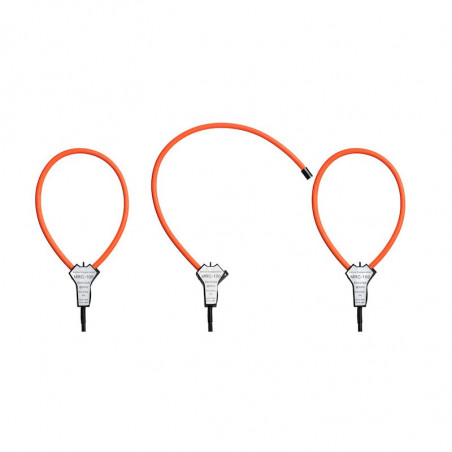

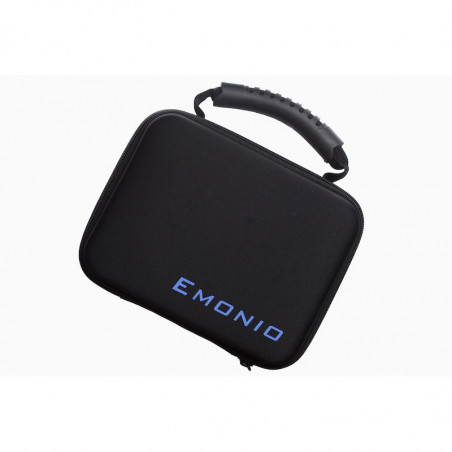

Emonio P3 complete with 3x 500A Rogowski Coils with inner width of 100mm, safety patchcords, 3x magnetic adaptors, 1x alligator clip and transport case.

Ready for measurements up to 120kW per single phase.

in stock

Power supply Magnetic test tips and crocodile clamps on U1, U2, U3 and N, no additional power supply needed.
Diameter magnetic test tips 6,6 mm
Measurement range (voltage) 240 V against Neutral, 400 V Phase-Phase
Operational range 100-240 V (between Neutral and Phase 1)
Inputs 3+1 for Voltage and Neutral, 3 Current
Measurement range 1, only CTs 0 bis 80 A (max. cable width: 10 mm)
Measurement range 2, only CTs 0 bis 200 A (max. cable width: 19 mm)
Measurement range 3, only CTs 0 bis 600 A (max. cable width: 32 mm)
Measurement range 4, Rogowski Coils 100 A, 250 A, 500 A, 1000 A, 3000 A (Inner diameter: 25 mm, 30/50 mm, 50/100 mm, 150 mm)
Input for current sensors ±0,33 V or ±0,5 V
Accuracy ± 1% for U, I, P, S, <3% for L, Q. All devices are calibrated and are shipped with a certificate.
Sample rate ~24.000 samples/sec
Datenpuffer (Standardeinstellungen) 22.000 Datensätze mit Zeitstempel und Werten für Strom, Spannung, Leistung getrennt für jede der drei Phasen oder 38.000 Datensätze mit Zeitstempel und Werten für Strom, Spannung, Leistung bei zusammengefassten drei Phasen. Reicht für ca. ein halbes Jahr.
Memory 1 MB flash memory or 8 GB sdhc-card (non removable). The extension from 1MB to 8GB can be retrofitted at any time. See also: Emonio X1 adapter in the shop.
Consumption 0,9 Watt
Communication internal and external WiFi, MQTT
Interface 3 LEDs
Operational temperature -5ºC to 60ºC
max. relative humidity 85 %
Size in mm (LxWxH) 127,00 x 88,90 x 38,10 mm
Weight (incl. cables and magnetic adapters, without current sensors) 250 g
Weight (incl. cables and magnetic adapters, with 80A current sensors) 445 g
Mounting options Magnetic back side, 3mm grommet
Over current category CAT III
Electromagnetic compatibility Tested according to EMC guidelines (2014/30/EU)
Electrical safety Tested according to LVD  (2014/35/EU)
Encryption Default: TLS 1.2
