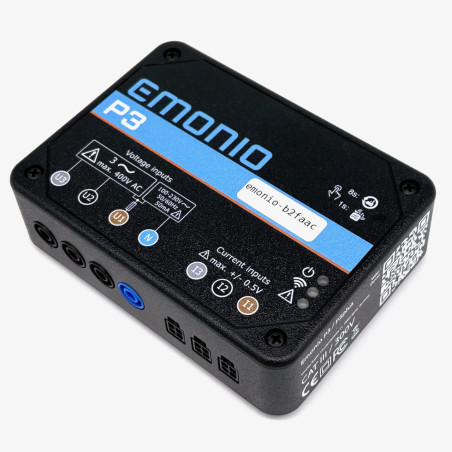

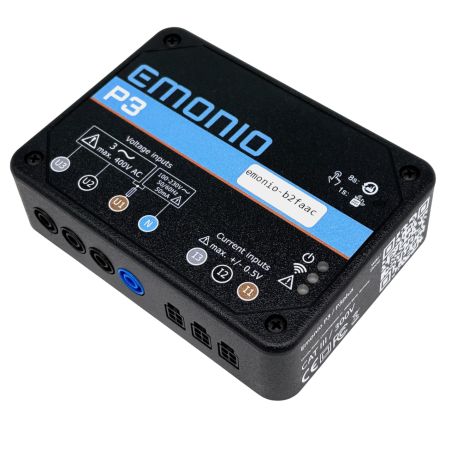

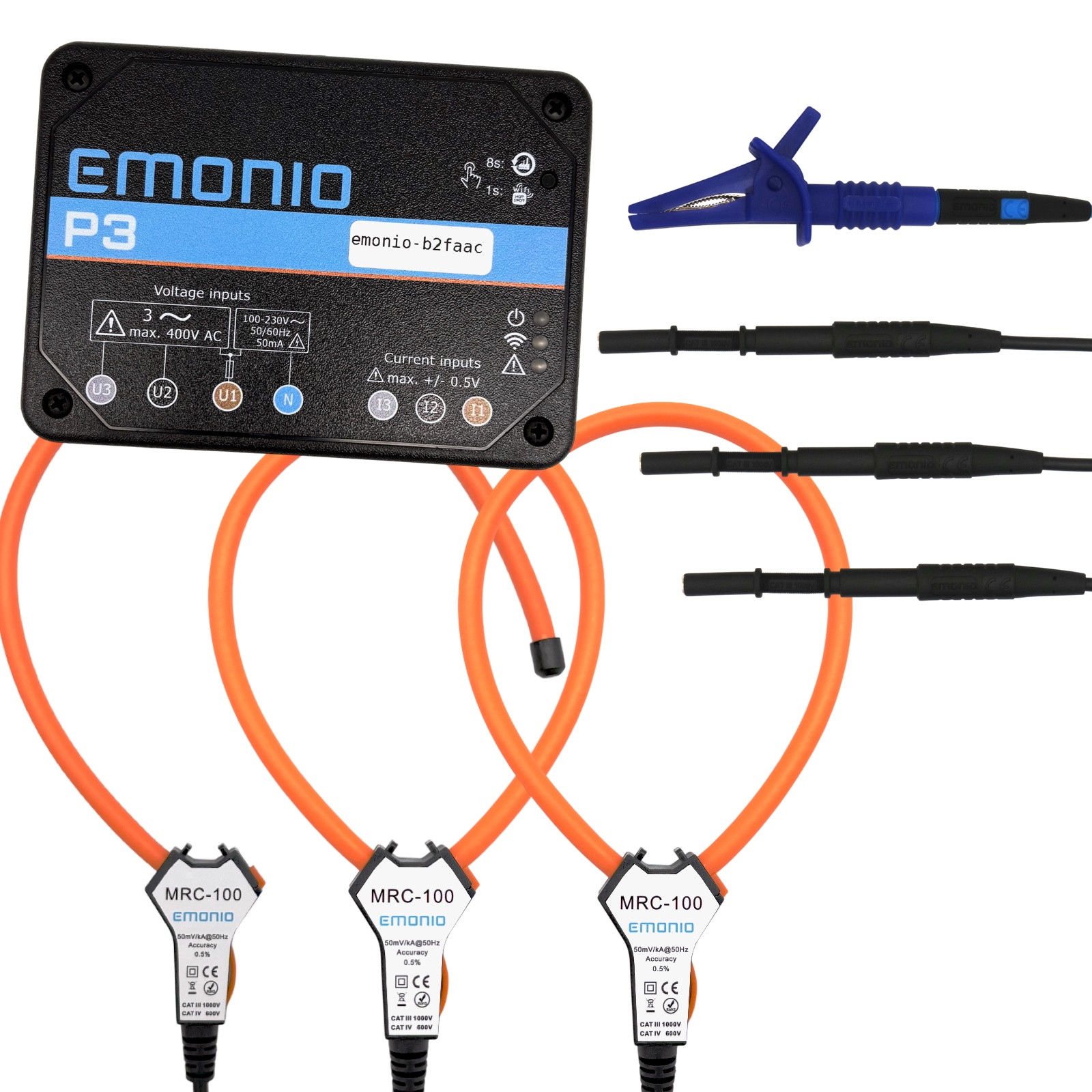

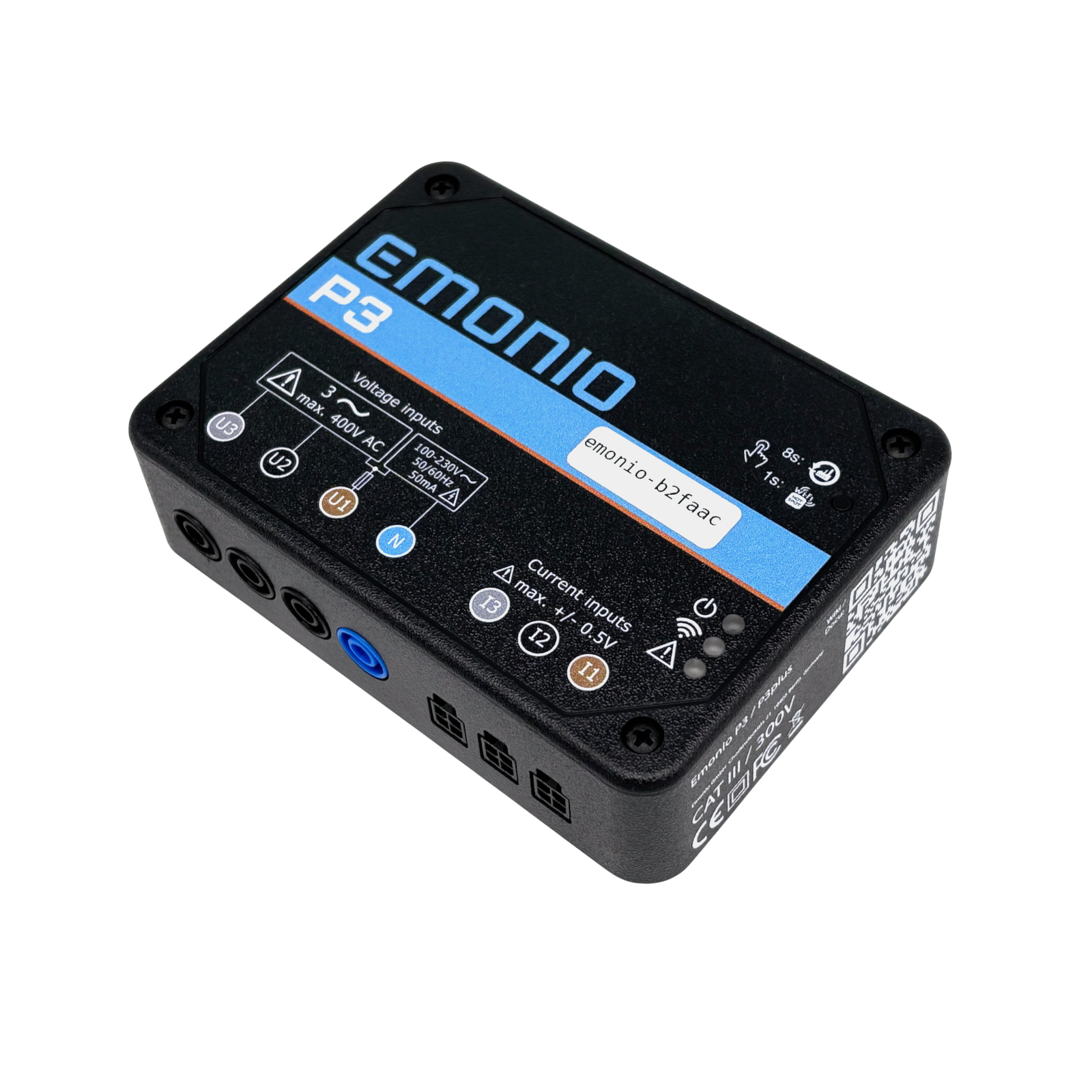

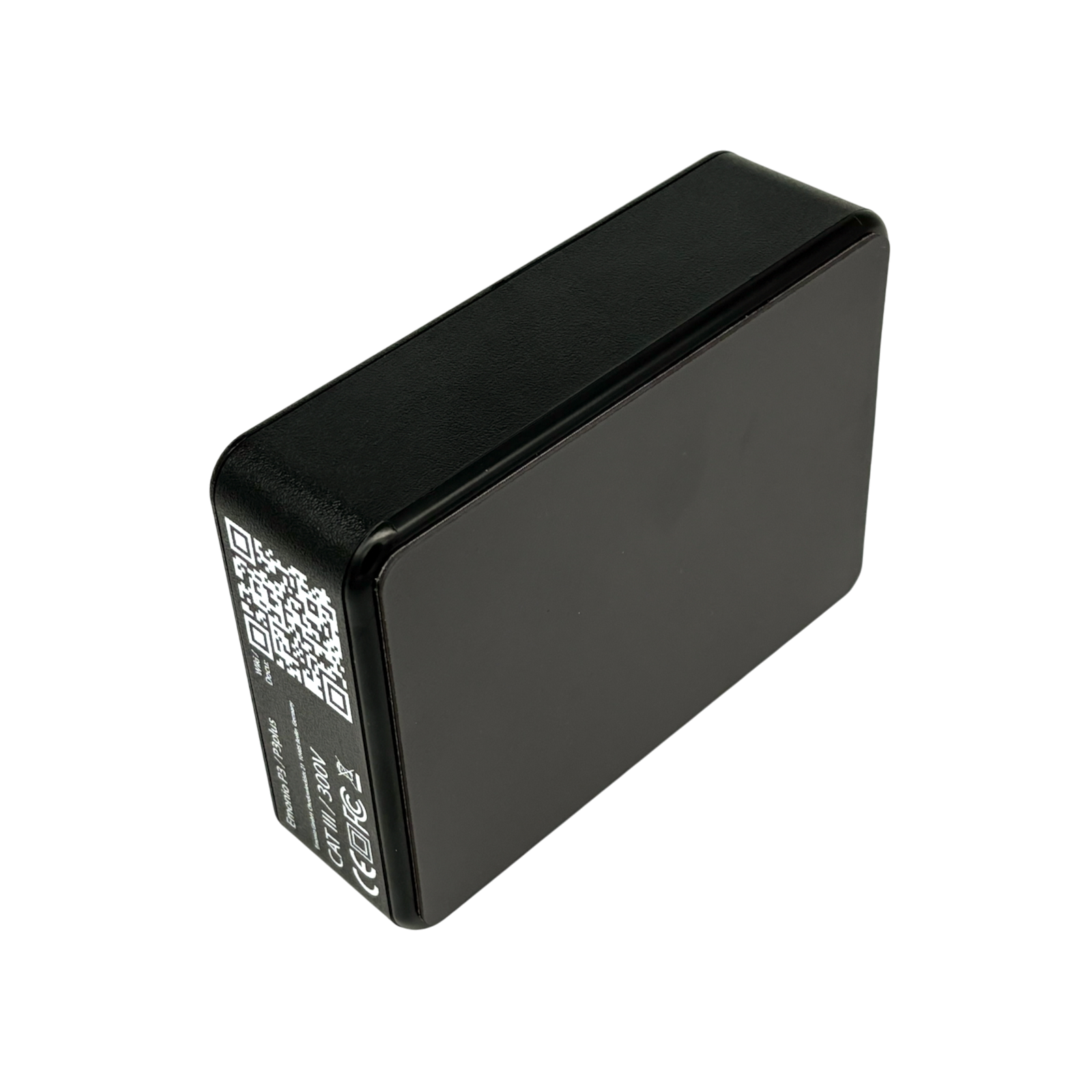

Emonio P3 energy meter with 32GB memory and complete accessories.

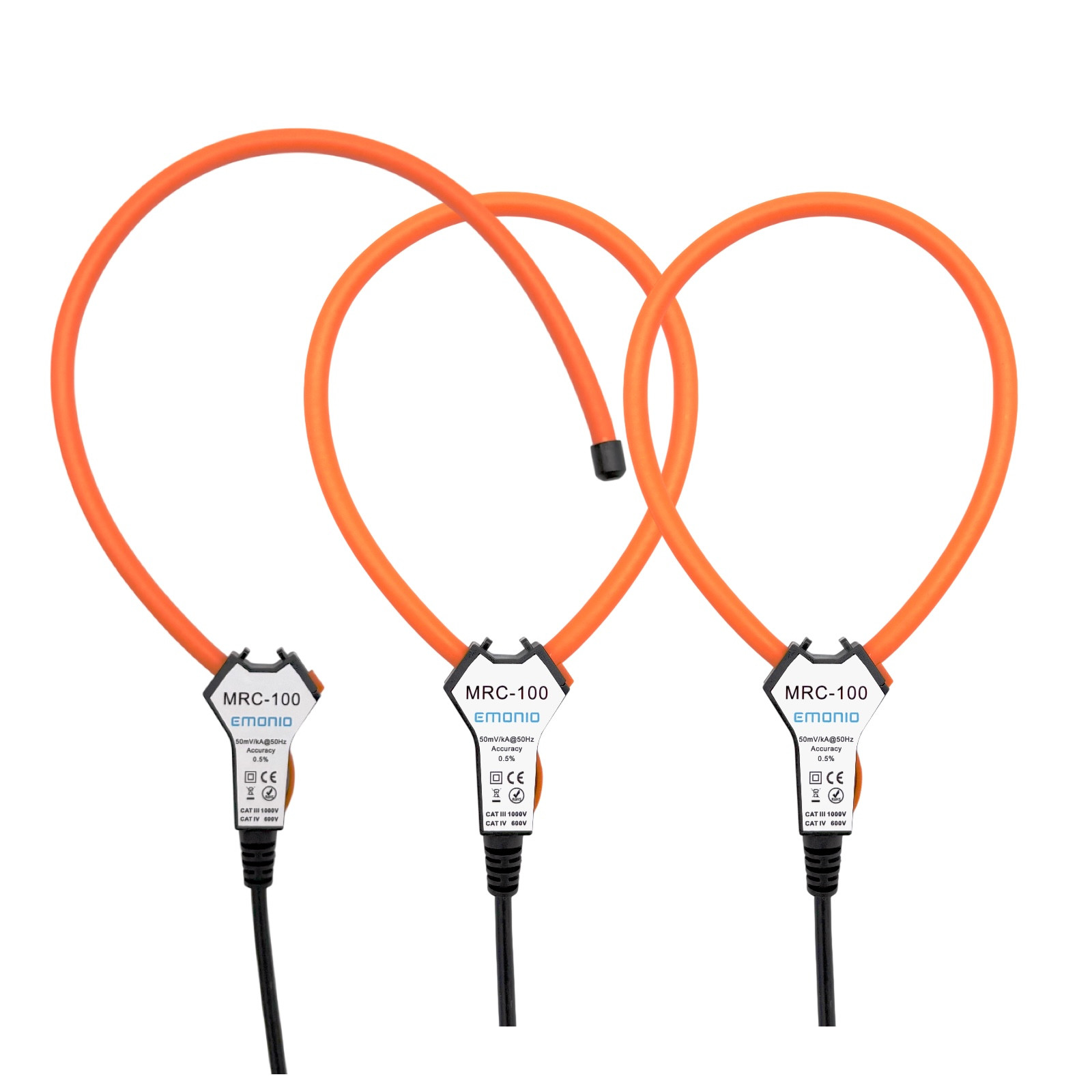

3x MRC100 Rogowski coil with 100mm inner diameter, 50mV/kA, 0.5% accuracy

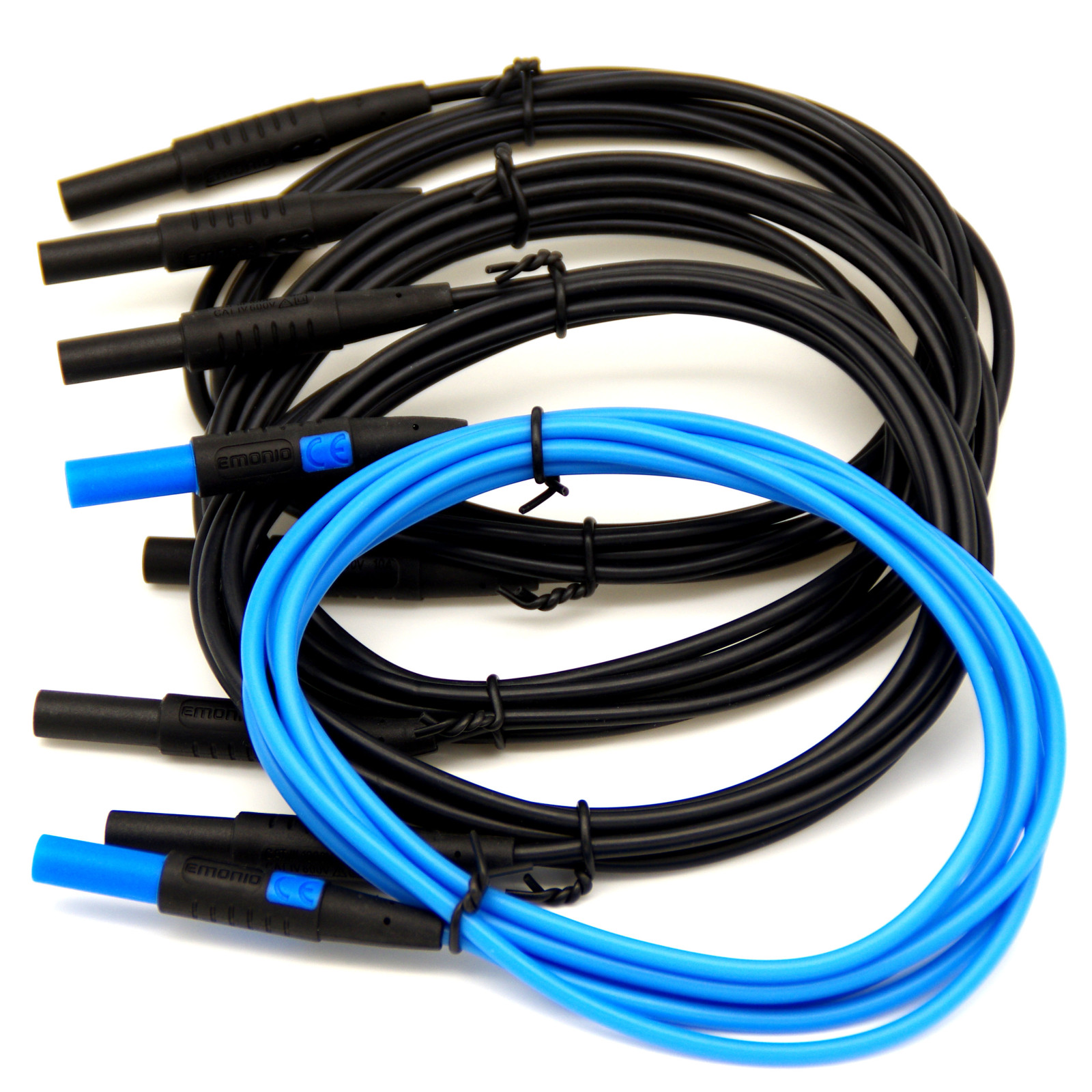

4x measuring cable 200cm (1x blue, 3x black)

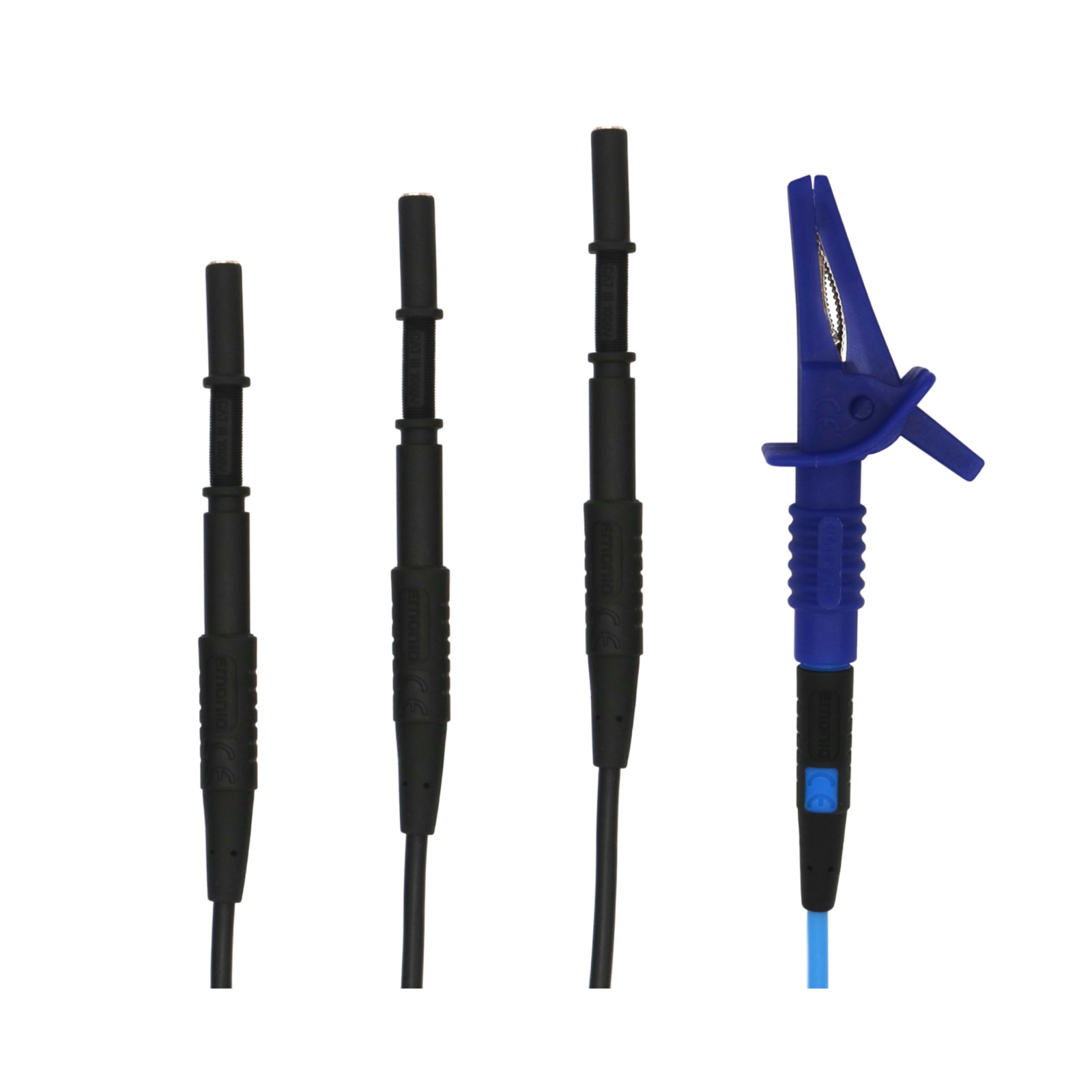

3x magnetic measuring tip, flexible, 6.2mm
1x crocodile clip, blue

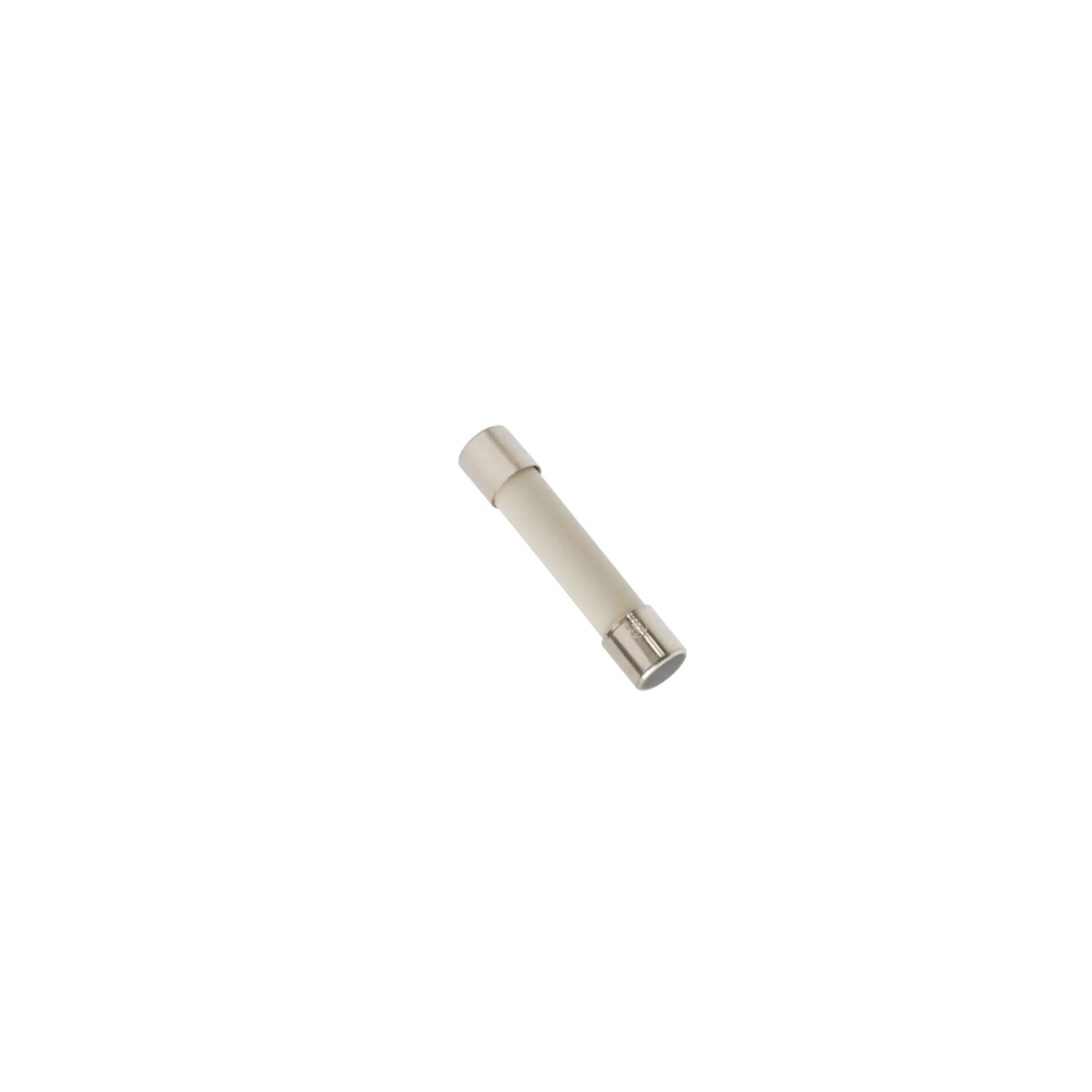

1x spare fuse 6x32mm, 1000V, 250mA, FF

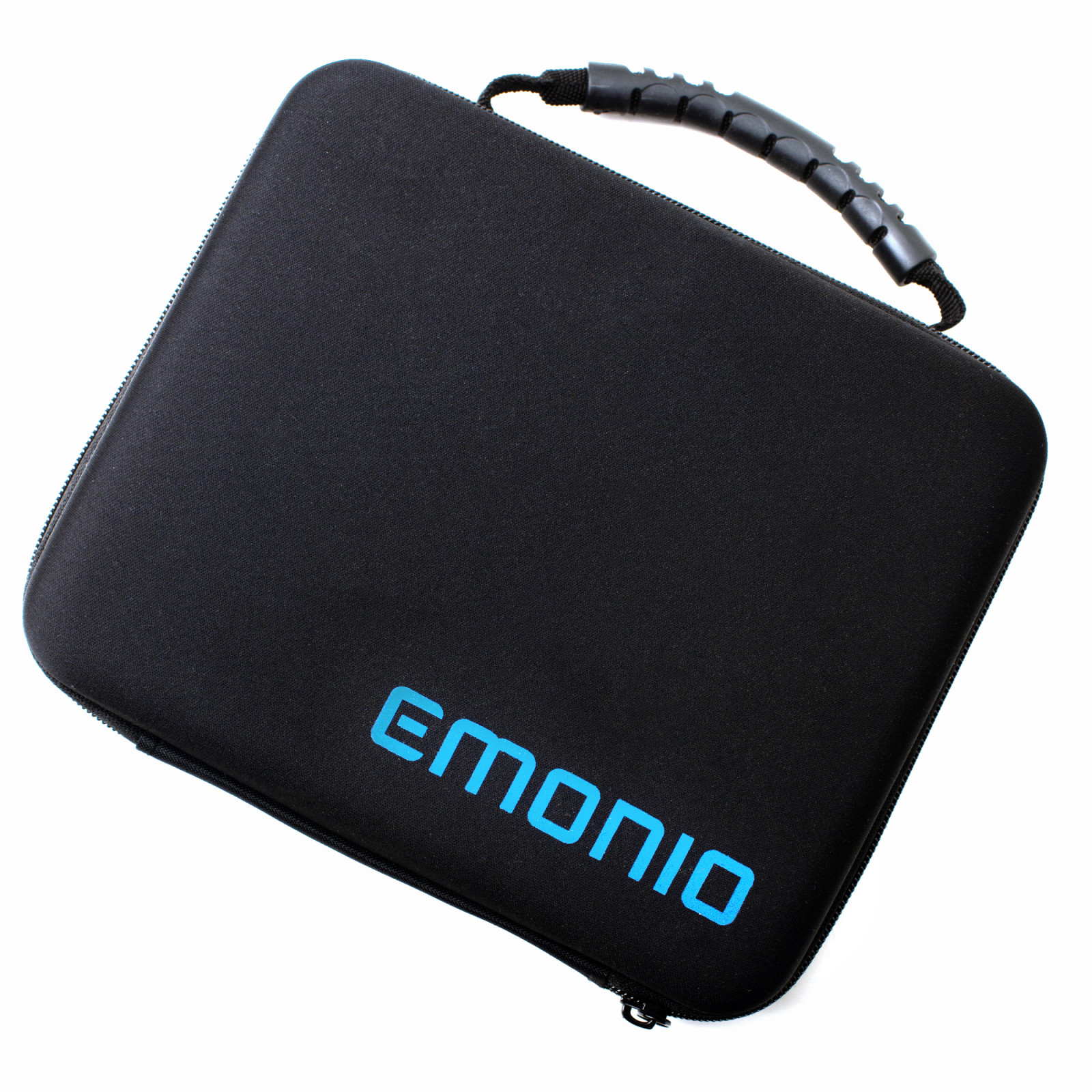

Transport bag
Power supply | Via integrated power supply and test leads on N and U1. |
Voltage | 100-240V ±10%, 50Hz/60Hz (between neutral und U1) |
Inputs | 3+1 voltage inputs, 3 current inputs |
Sampling rate | 32.000 samples/s |
Input level voltage inputs | 230V: N <==> U1, 400V: U1 <==> U2 <==> U3 |
Input level current inputs | max. ±0,5V |
Measurement uncertainty | ± 1% for U, I, P, S, L and Q, all devices are calibrated and come with factory certificate. |
Data buffer | Up to 1 year in full resolution (if internet connection is interrupted) |
Memory | 32GB memory on integrated SDhc card, sufficient for up to 2 years in 1-second resolution. |
Consumption (max., typical) | 50mA / 15mA |
Communication | WiFi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s or BT: v4.2 BR/EDR and BT Low Energy (BLE) |
Security | IEEE 802.11 with all Standards, incl. WFA, WPA/WPA2 and WAPI, TLS 1.2 |
Standards | MQTT, ModBus/TCP, DHCP, HTTP, NTP, SMTP, FTP, Telnet |
Display | 3 status-LEDs |
Operating conditions | -5ºC bis 40ºC, max. 80% RH, |
Size in mm (LxWxH) | 116,0 x 84,5 x 35,40mm |
Weight | 237g |

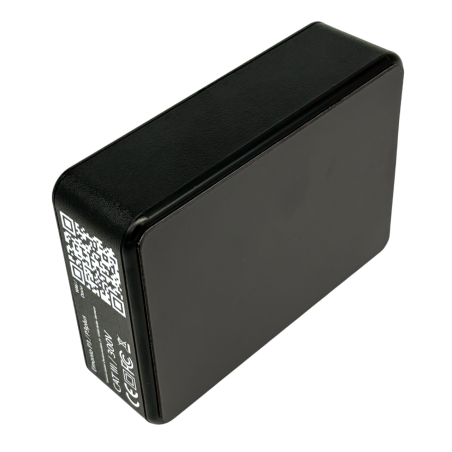

Mounting | via magnetic backside |
Measurement category acc. to EN61010-2-030 | CAT III / 300V |
Overvoltagecategory acc. to EN61010-1 | OVC III |
IP Category | IP20 |
