Energy sensor for gas meter

€46.41
Tax included in stock

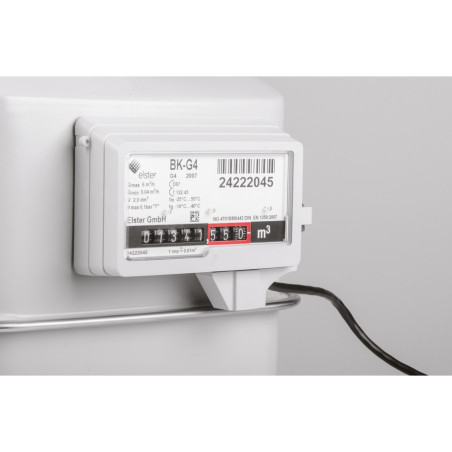

The Energy Sensor Gas 2 is designed for the convenient and reliable detection and transmission of counting pulses generated by a magnet in the roller counter of a conventional gas meter.
in stock

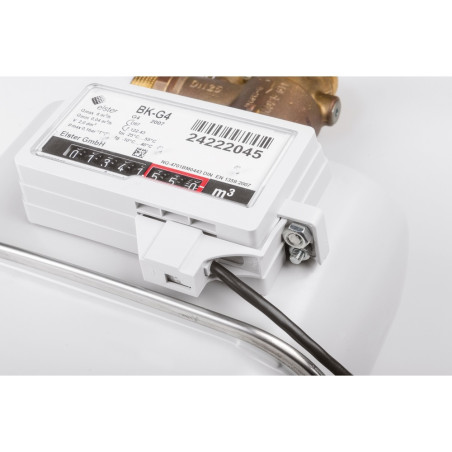

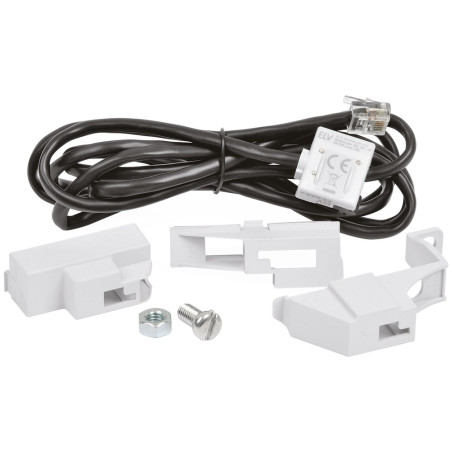

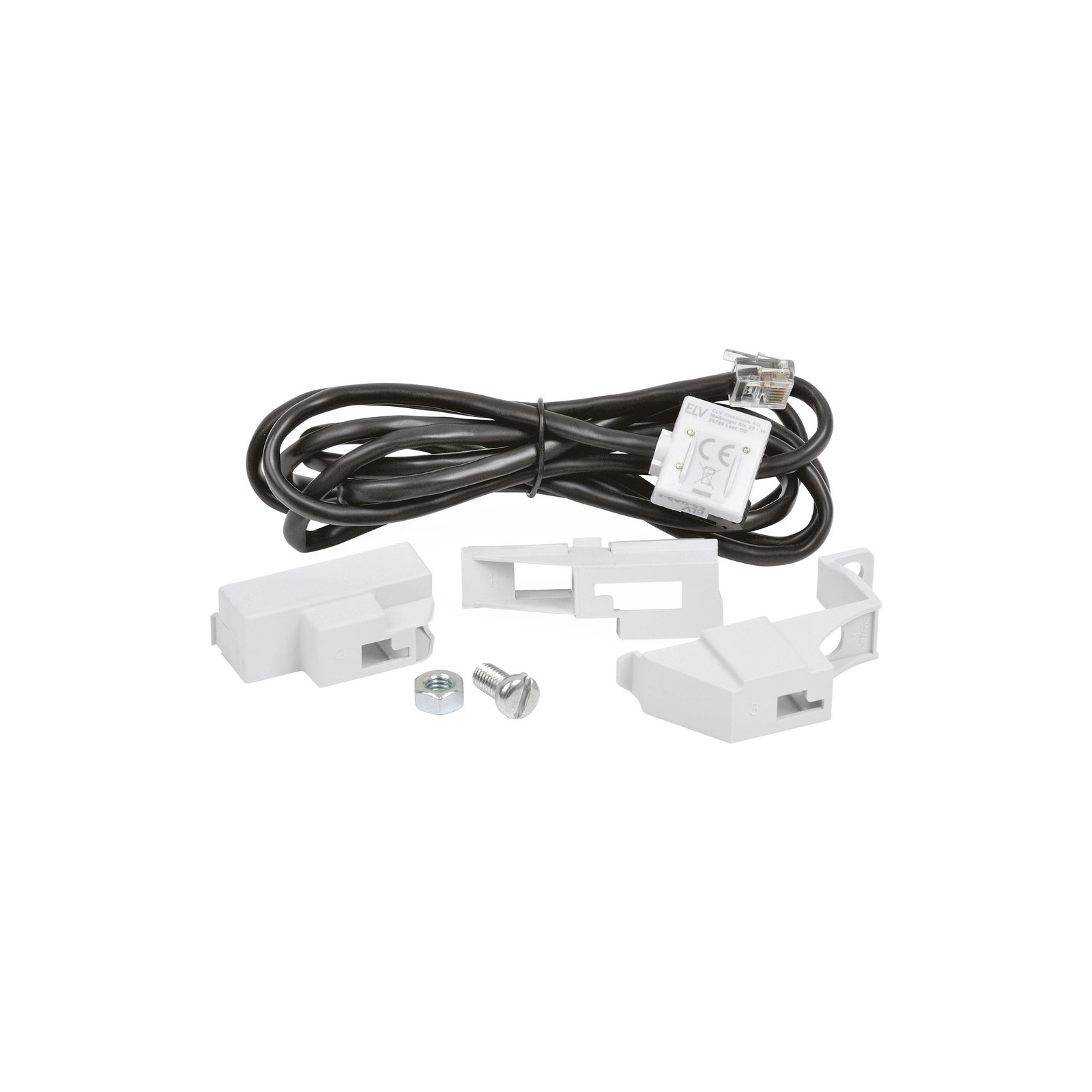

The sensor is compatible with gas meters from Pipersberg, Metrix and Elster. Adapters are supplied for these brands for professional and simple attachment to the gas meter.

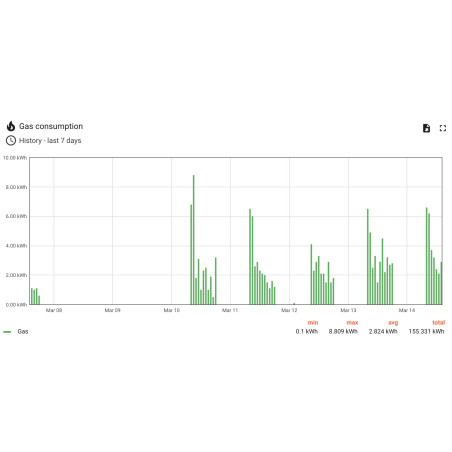

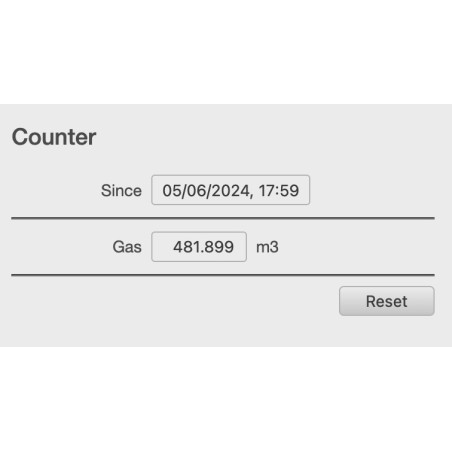

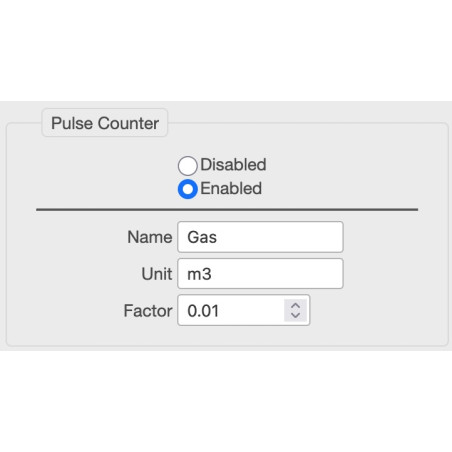

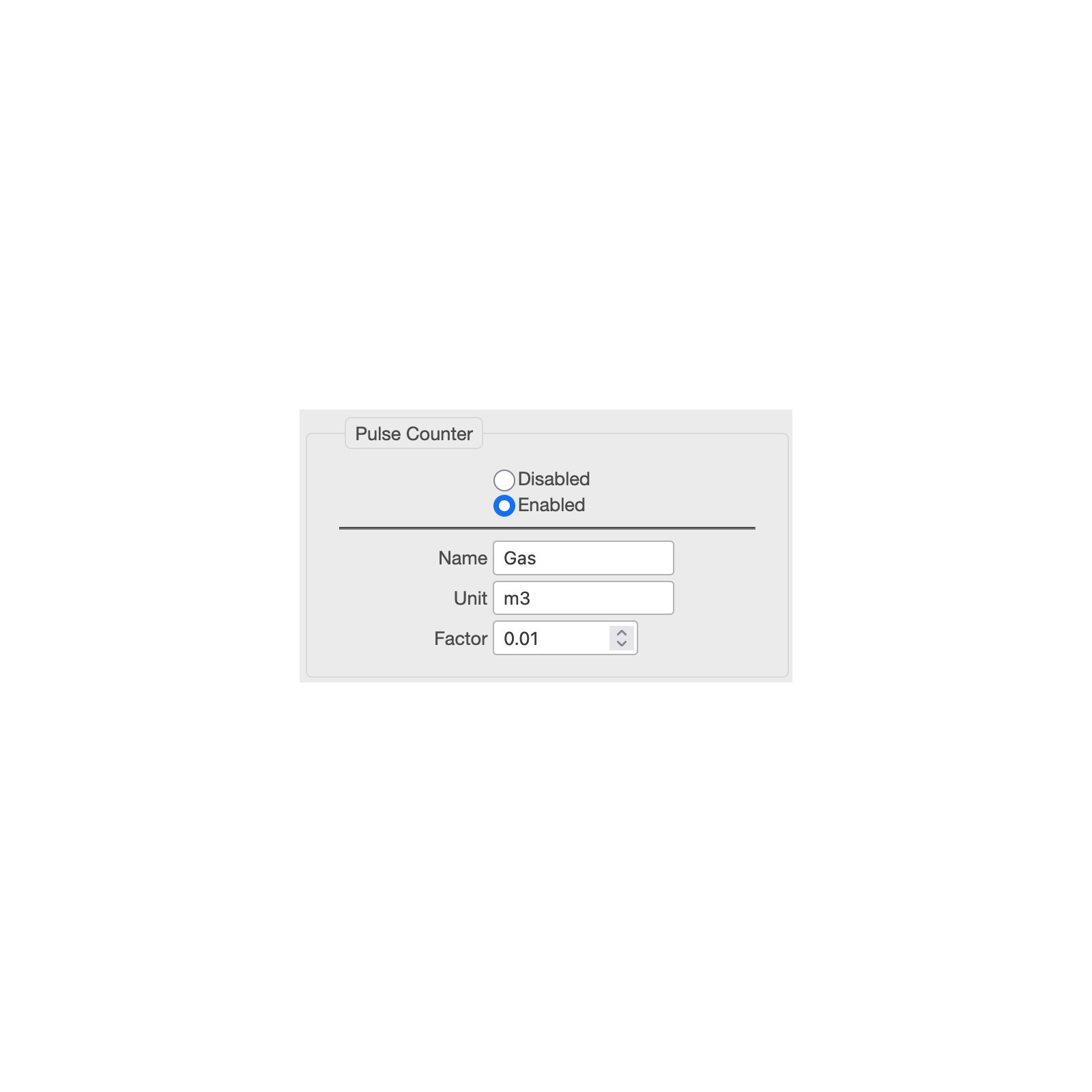

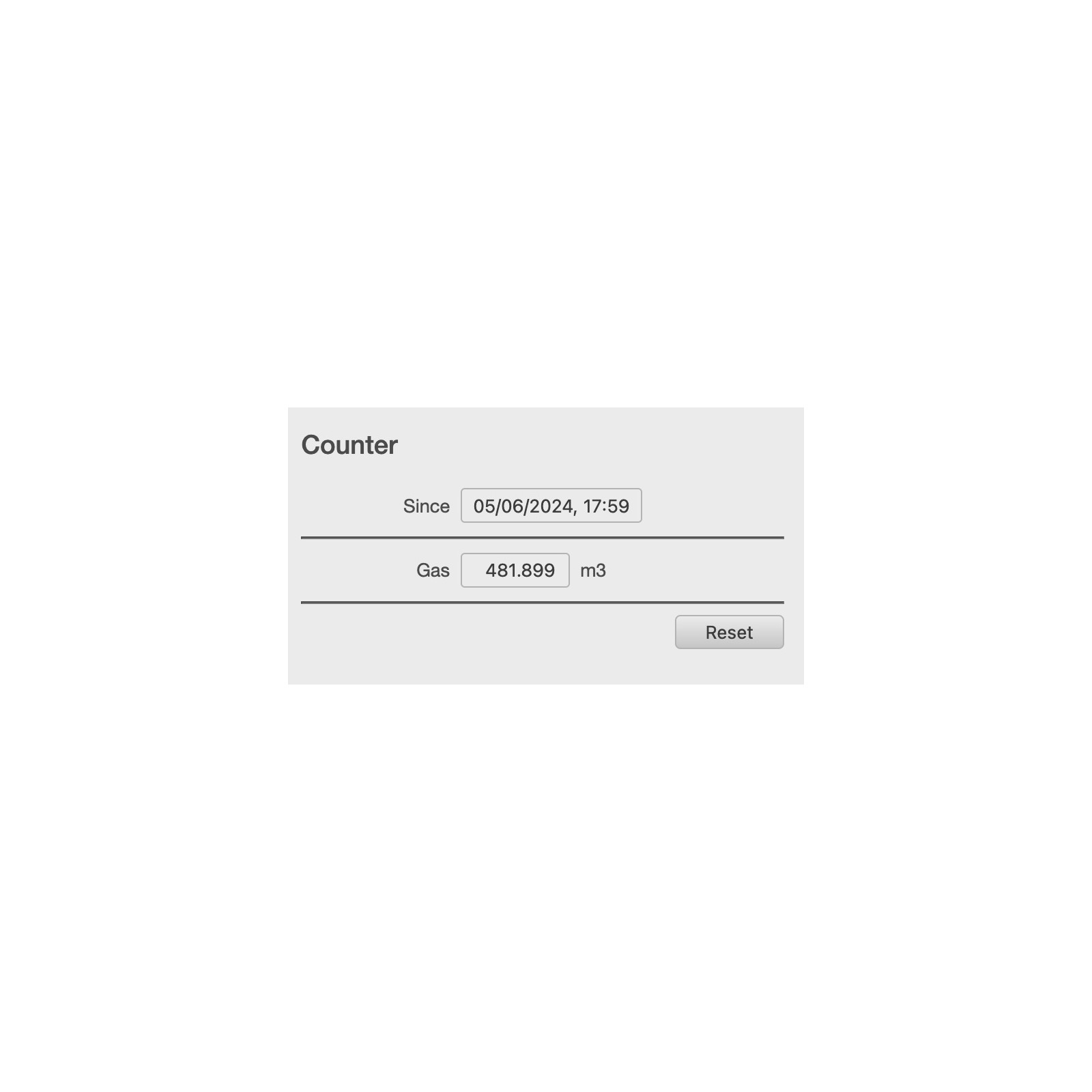

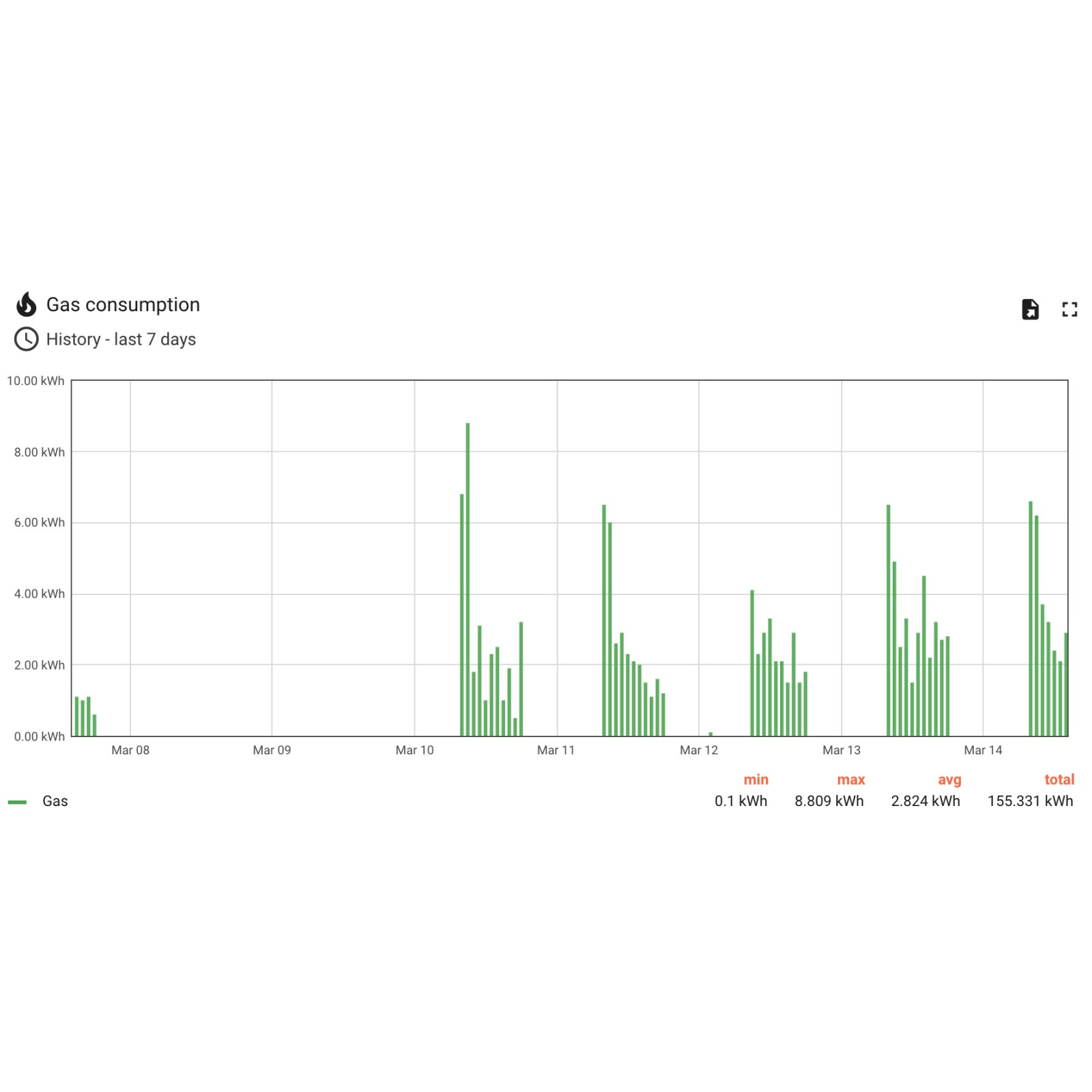

The data is recorded via the pulse input of the Emonio P3 / P3plus and can be provided with a multiplier and named as required. The data can be recorded locally in the CSV file and transmitted via telemetry or ModBus/TCP.

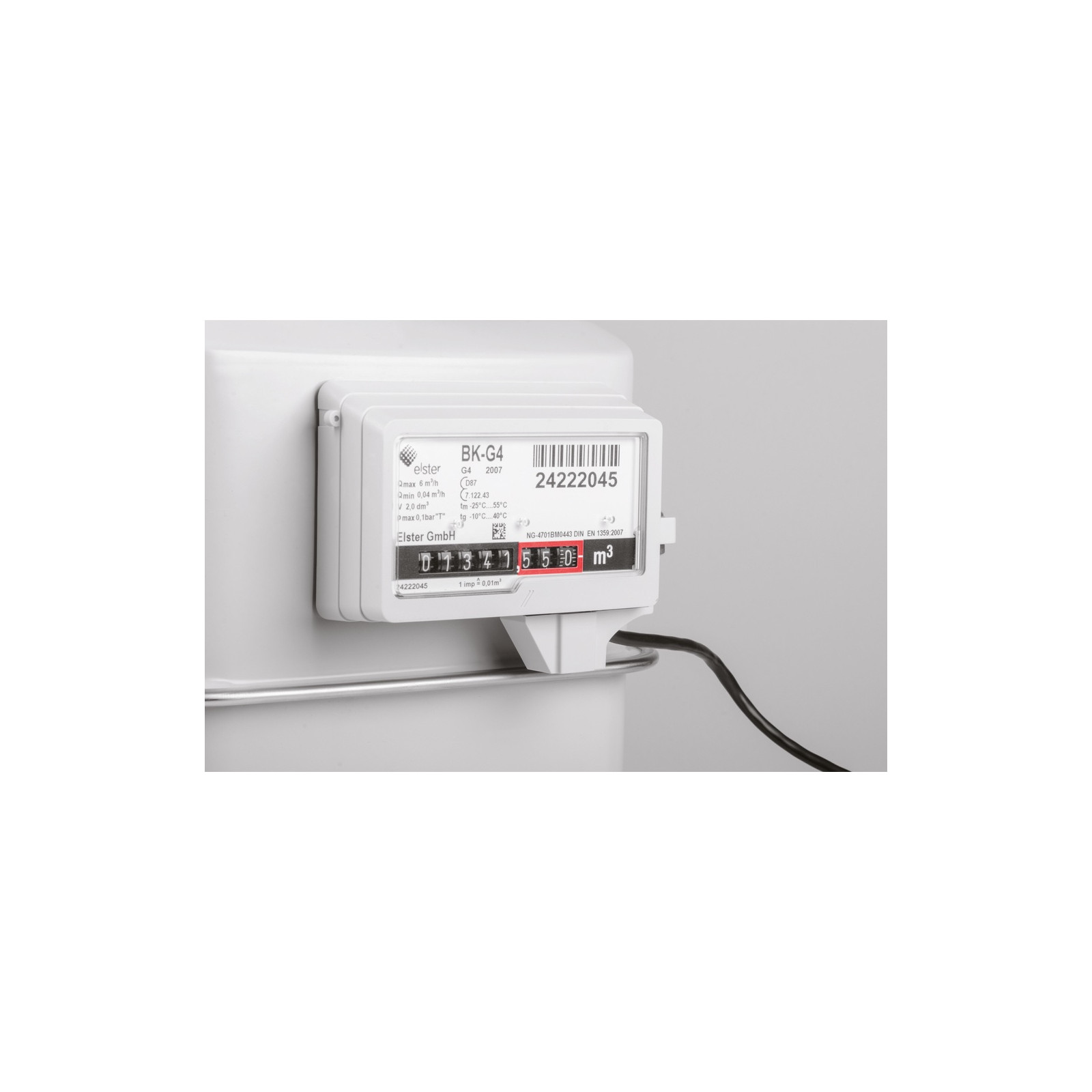

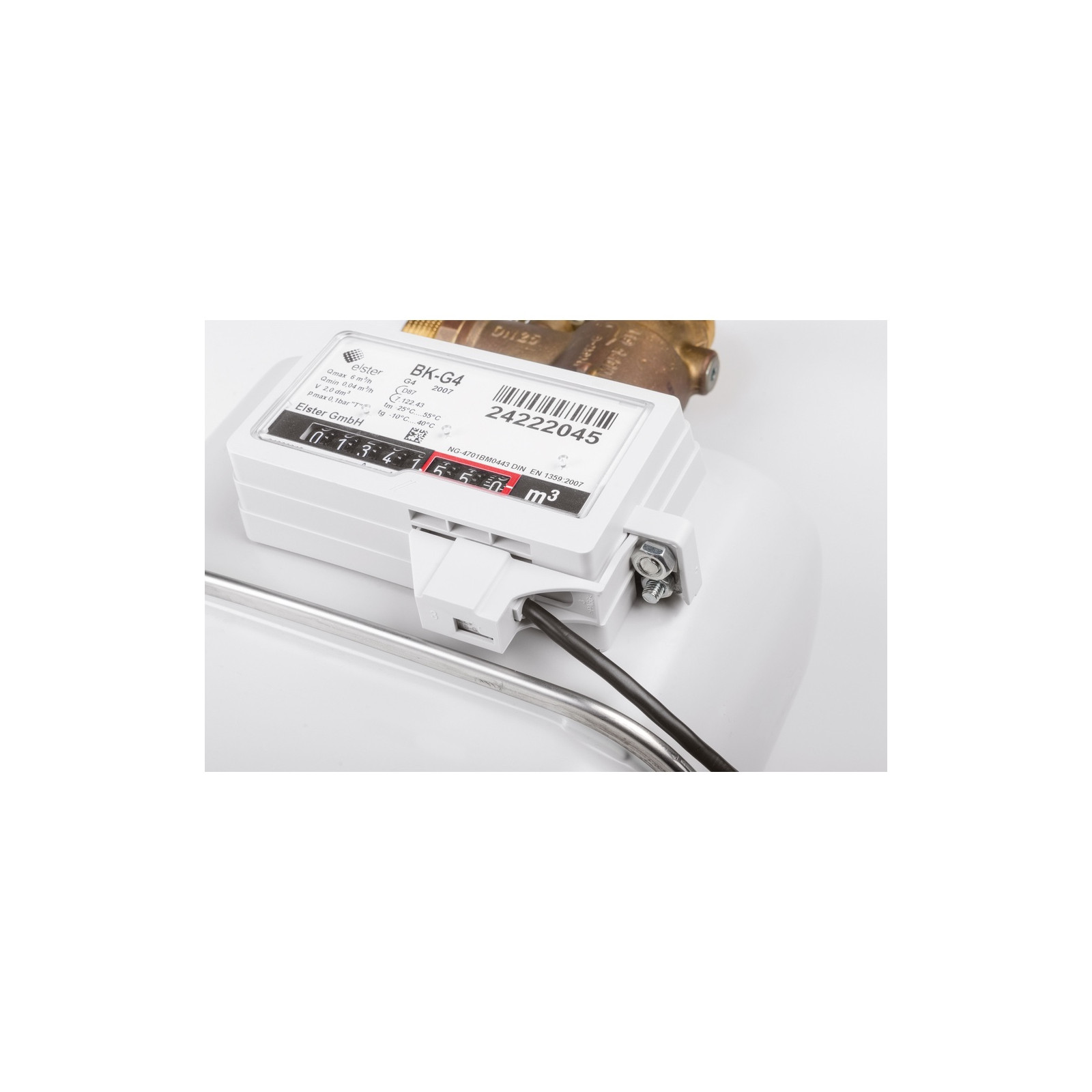

  • Magnetic sensor for the attachment of a sensor prepared gas meters from the manufacturers Pipersberg (Itron, Actaris), Metrix (Adaptor) and Elster (Kromschröder)
  • Connection to the Emonio P3 / P3plus via optional 3-pin socket
  • Can also be used as an interface with max. 2 m cable length for other pick-ups: potential-free reed contacts or other sources that behave like potential-free reed contacts


Note: Contactless gas meter sensor for Elster (Kromschröder) gas meters only for BK-G models.

#4014_Gas2
