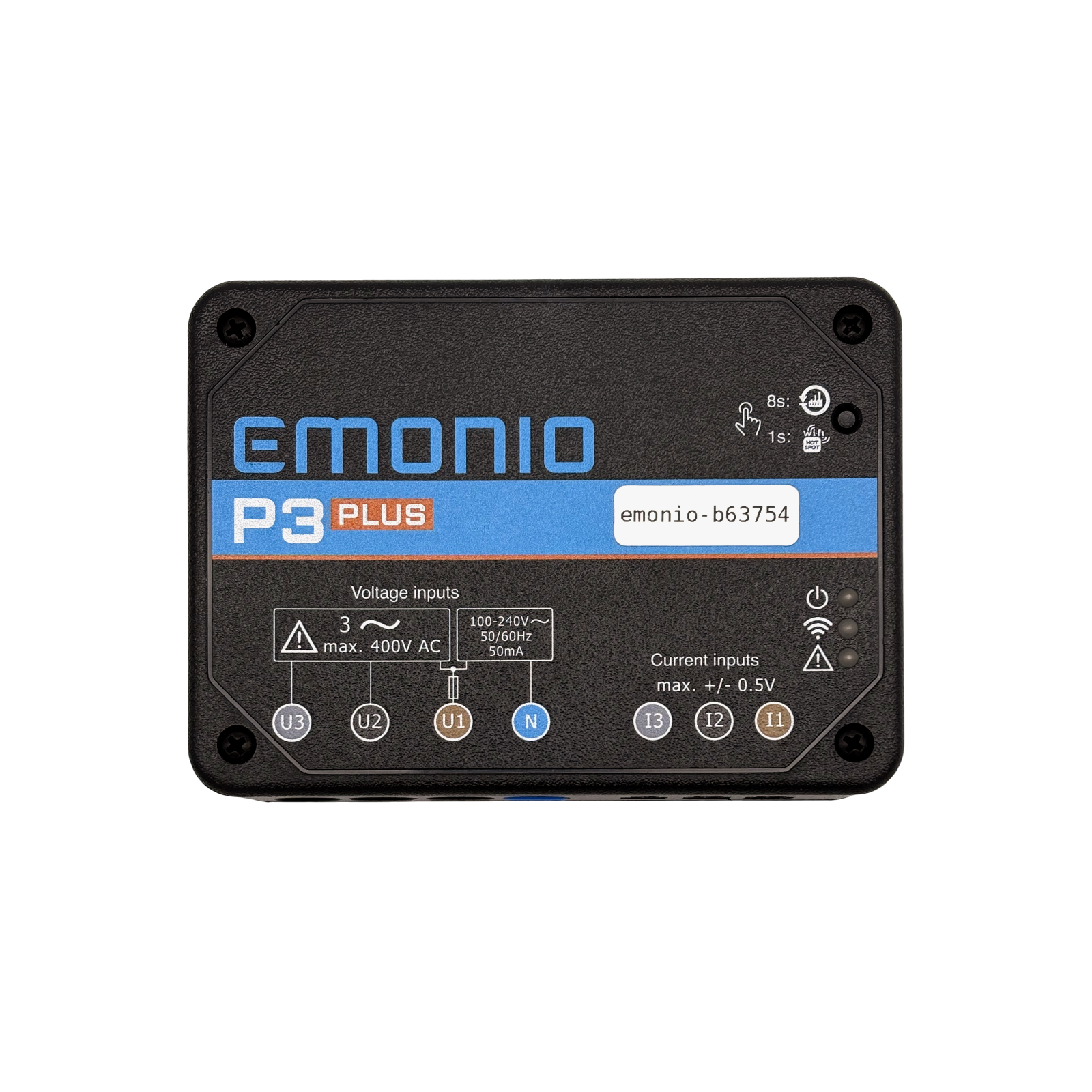

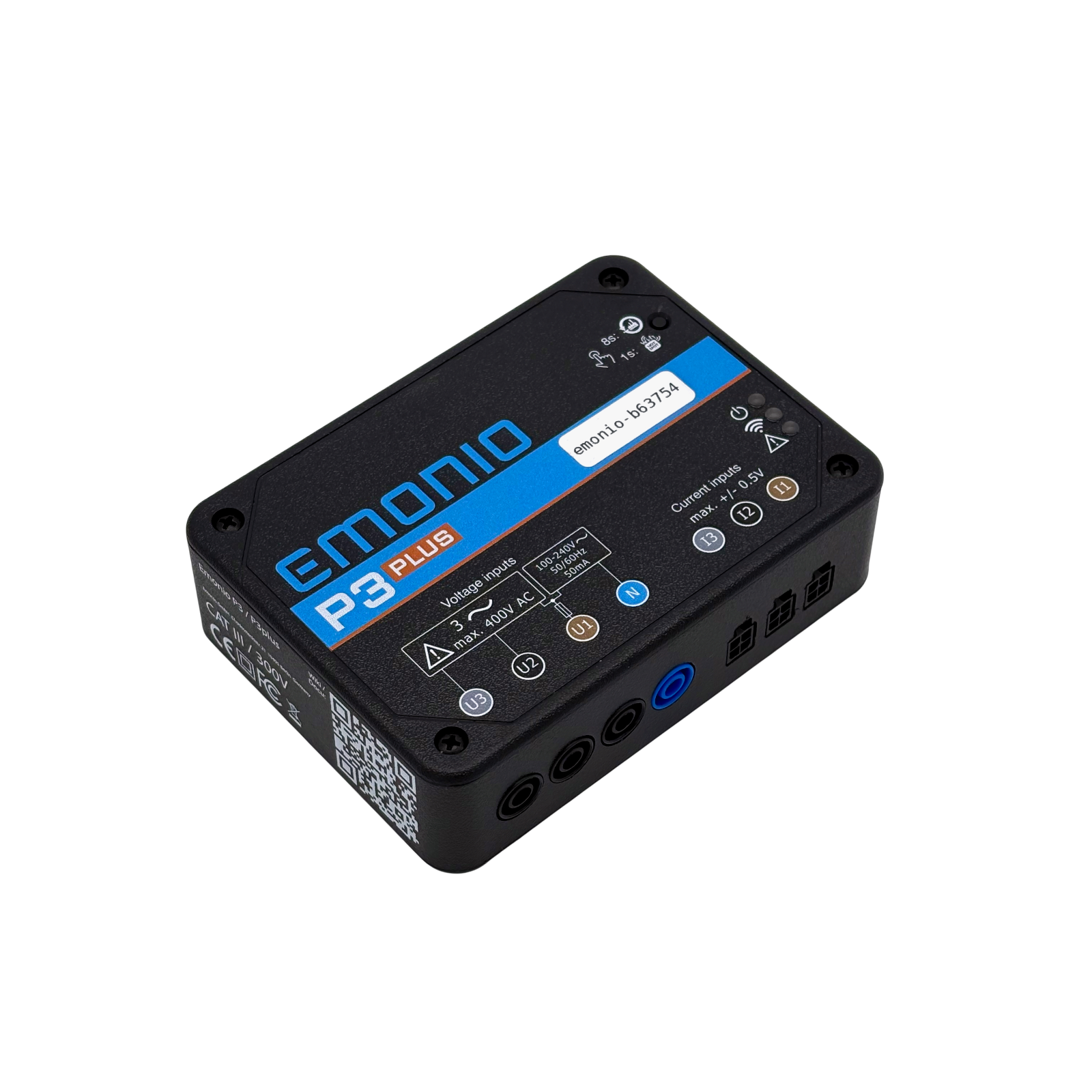

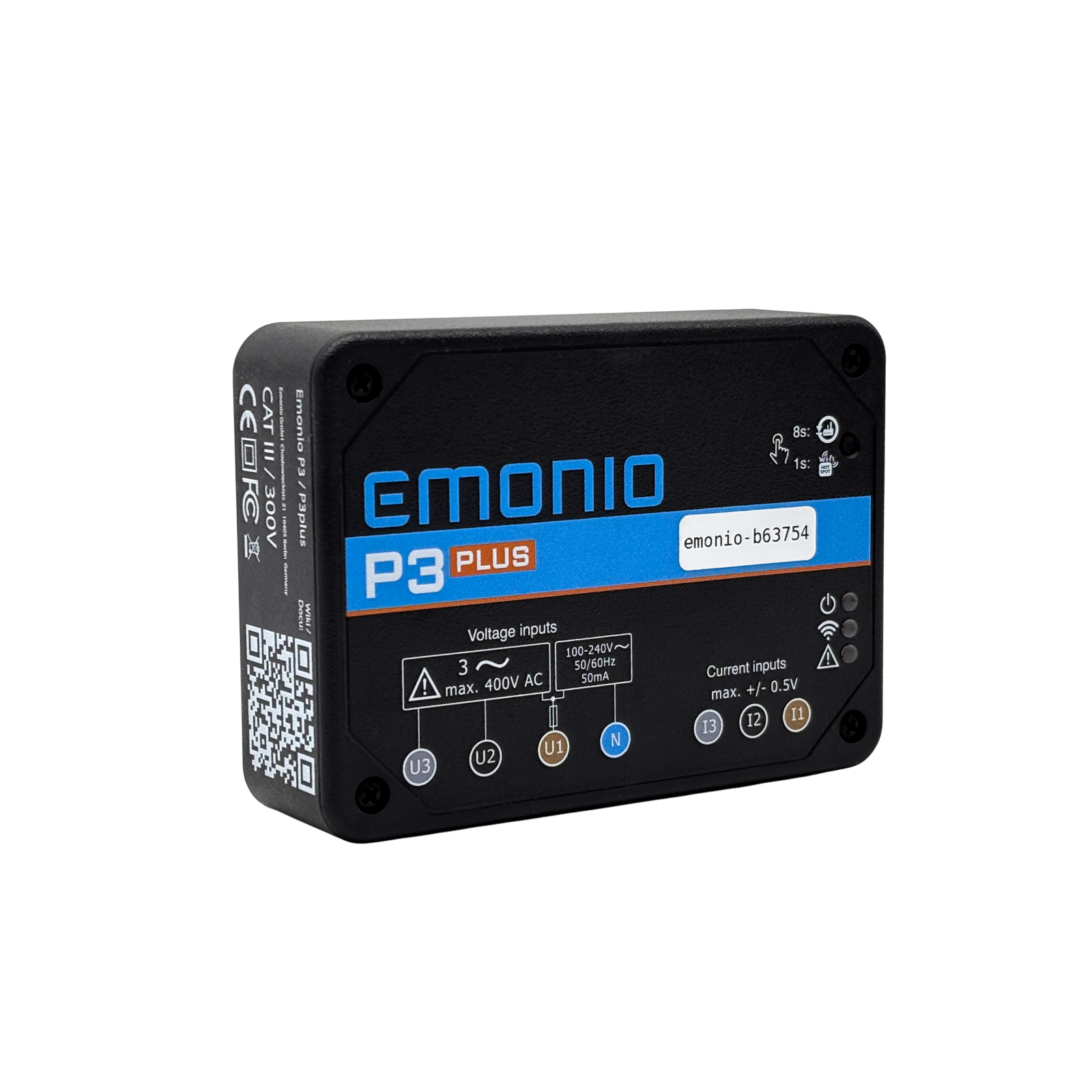

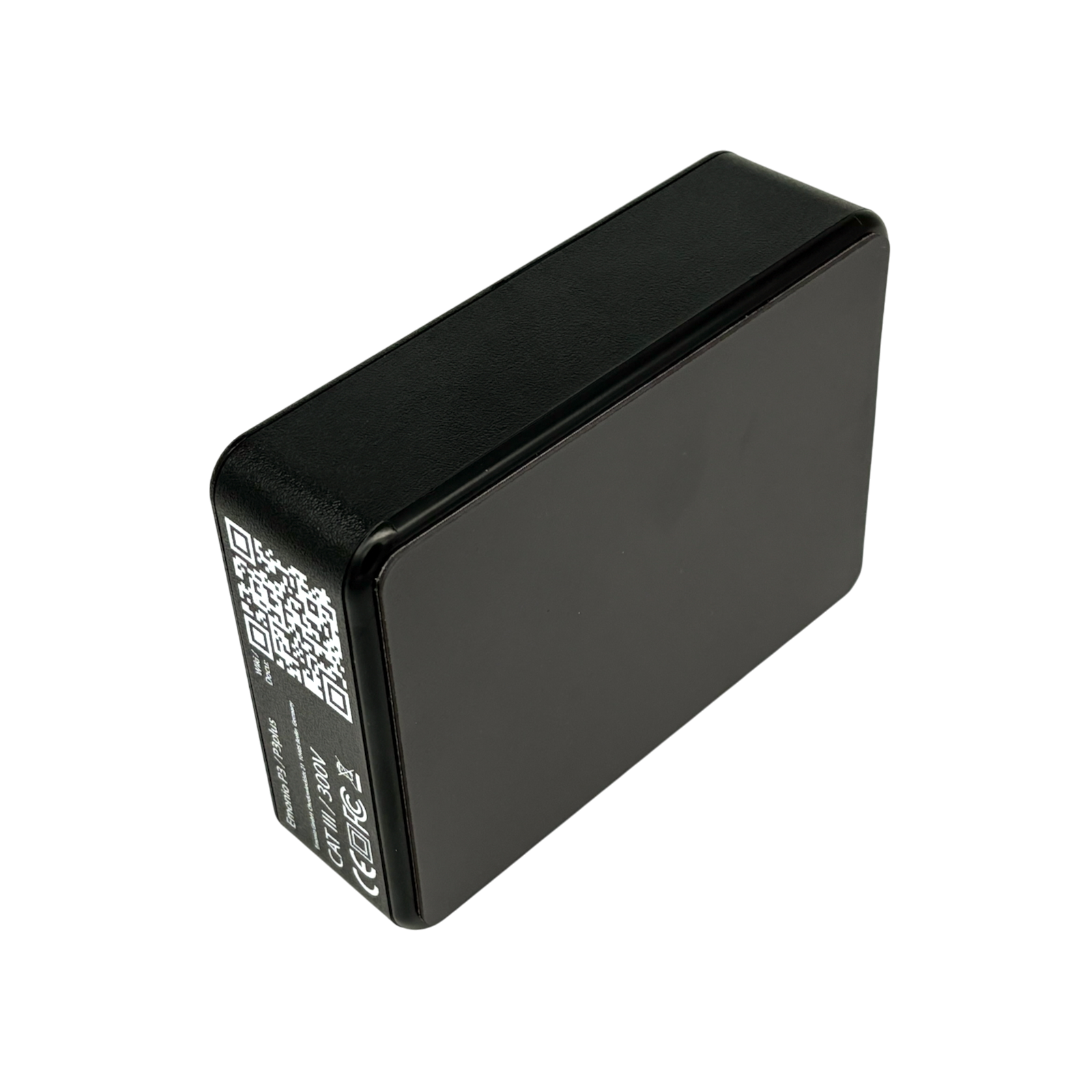

Emonio P3plus
€593.81
Tax included
Shipping excluded
in stock
Emonio P3plus with harmonic analysis, 32GB memory, standalone device without any accessory.
| Power supply | Via integrated power supply and test leads on N and U1. |
| Voltage | 100-240V ±10%, 50Hz/60Hz (between neutral und U1) |
| Inputs | 3+1 voltage inputs, 3 current inputs |
| Sampling rate | 32.000 samples/s |
| Input level voltage inputs | 230V: N <==> U1, 400V: U1 <==> U2 <==> U3 |
| Input level current inputs | max. ±0,5V |
| Measurement uncertainty | ± 1% for U, I, P, S, L and Q, all devices are calibrated and come with factory certificate. |
| Data buffer | Up to 1 year in full resolution (if internet connection is interrupted) |
| Memory | 32GB memory on integrated SDhc card, sufficient for up to 2 years in 1-second resolution. |
| Consumption (max., typical) | 50mA / 15mA |
| Communication | WiFi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s or BT: v4.2 BR/EDR and BT Low Energy (BLE) |
| Security | IEEE 802.11 with all Standards, incl. WFA, WPA/WPA2 and WAPI, TLS 1.2 |
| Standards | MQTT, ModBus/TCP, DHCP, HTTP, NTP, SMTP, FTP, Telnet |
| Display | 3 status-LEDs |
| Operating conditions | -5ºC bis 40ºC, max. 80% RH, |
| Size in mm (LxWxH) | 116,0 x 84,5 x 35,40mm |
| Weight | 237g |
| Mounting | via magnetic backside |
| Measurement category acc. to EN61010-2-030 | CAT III / 300V |
| Overvoltage category acc. to EN61010-1 | OVC III |
| IP Category | IP20 |
#9000_P3plus
